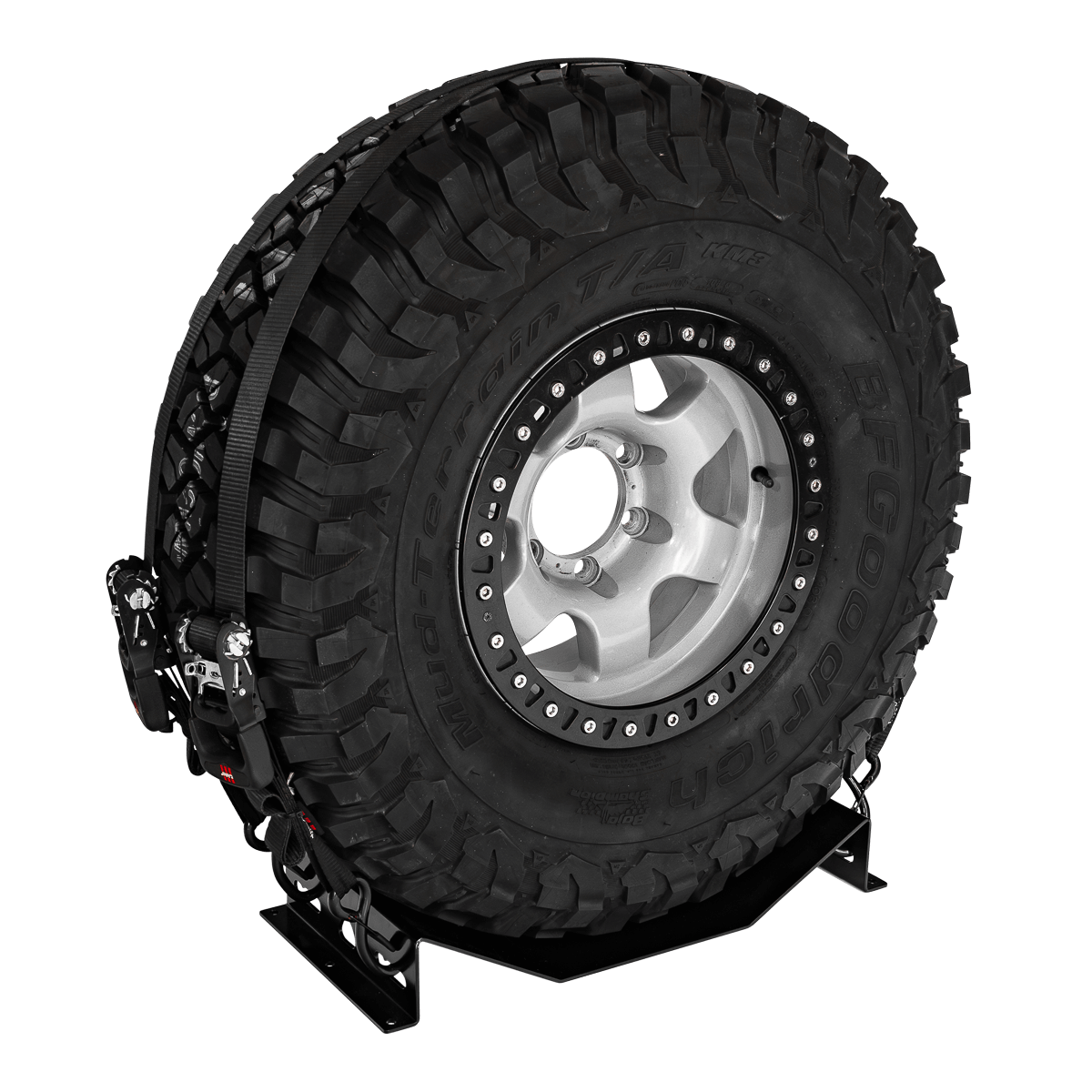

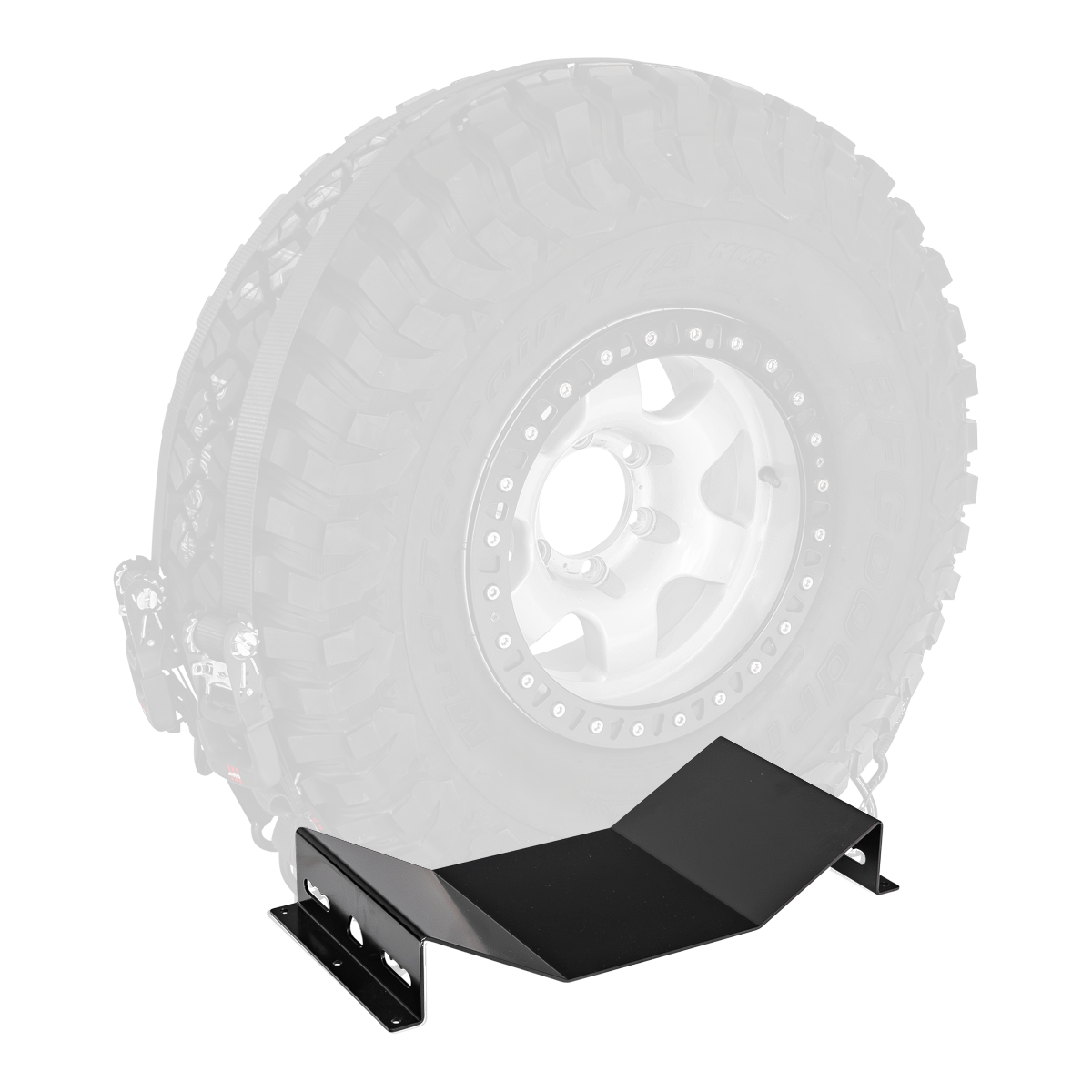

Floor Mounted Spare Wheel Holder

$119.00

This item will be shipped approx. 23/08/2021. (Please allow up to 2 weeks after this date before contacting us)

or 4 fortnightly payments of $29.75 with Afterpay More info

Mount your spare tyre up at the headboard, or at the rear of your half canopy or dogbox, this spare wheel mount allows you to mount a spare from 31” to 35” without the need for a reinforced vertical surface. Simply bolt through into your tray in a suitable location, and BYO ratchet straps of choice to match the colour of your rig. Combine it with the Wheel Locking Rod Kit (Sold Separately) featuring a machined stainless threaded rod to tighten down on your wheel using the padded 140mm center disc, plus the ability to throw a padlock through the tip to stop thieves stealing your wheel.

Available for pre-ordering

Optional Extra: Padlock and fasten your spare wheel with this!

  • Wheel Locking Rod Kit $120.00

Product total

Options total

Grand total

SKU: TRST-0013-0004 Categories: , , Tag:
Australian-Made-Owned-spot-colour-logo

Did you know all iBUILT KITS products are approved as Australian Designed, Made and Owned?

Thanks for supporting a local 👍

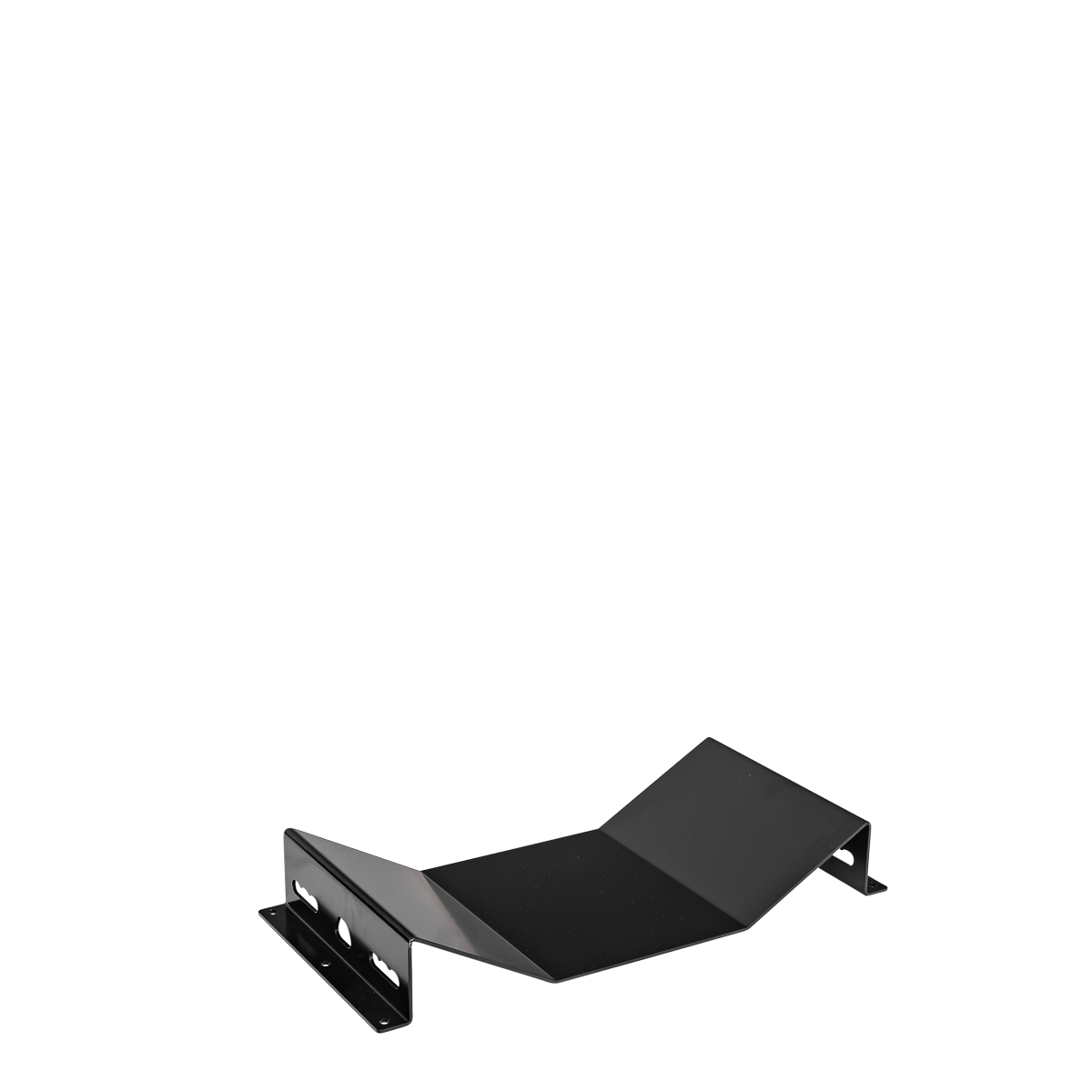

spare wheel mount base

A wheel mount that will never tyre!!!

Mount your spare tyre up at the headboard, or at the rear of your half canopy or dogbox, this spare wheel mount allows you to mount a spare from 31” to 35” without the need for a reinforced vertical surface. Simply bolt through into your tray in a suitable location, and BYO ratchet straps of choice to match the colour of your rig. Combine it with the Wheel Locking Rod Kit (Sold Separately) featuring a machined stainless threaded rod to tighten down on your wheel using the padded 140mm center disc, plus the ability to throw a padlock through the tip to stop thieves stealing your wheel.

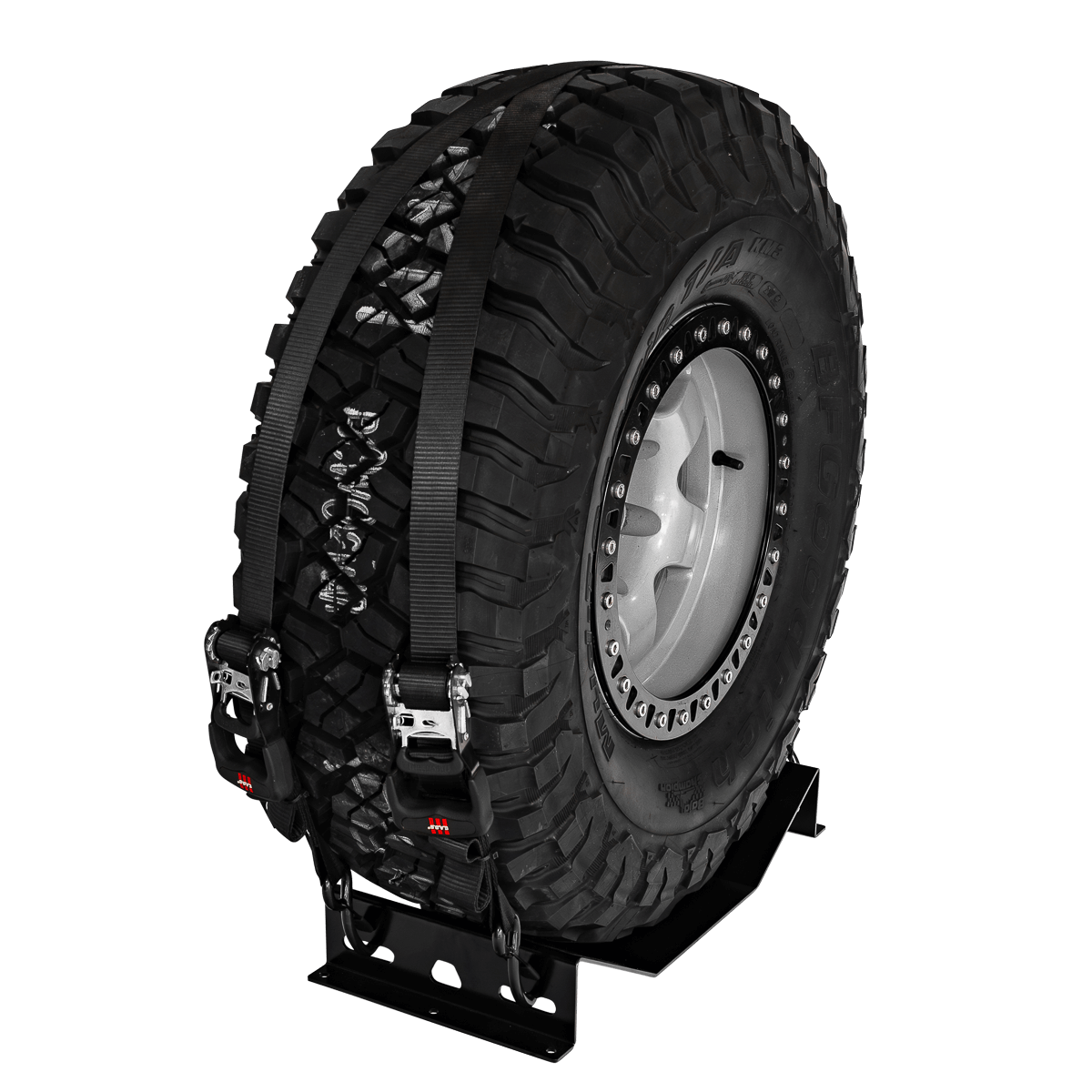

ratchet strap position for spare wheel holder

Attention to detail around every corner!

Our designs are completely original with not a single corner has been cut, both in the final product but also in the process getting here. When we mention attention to detail you would not imagine the thought process and planning that has gone into each and every one of our Australian made products. Each and every design has been through multiple revisions and prototypes leaving us with a product we are stoked to leave our mark with throughout the Aussie 4WD scene.

Trust us when we say, “You won’t be disappointed”.

ratchet strap spare wheel mount

So Simple… Yet so functional

Constructed from 4mm thick Aussie made marine grade aluminium, this spare wheel mount base is rock solid in both form and function. Its simplicity keeps your setup looking tidy but built in adjustability allows you to change strap position to suit any width tyre you throw at it.

We supply these bases without ratchet straps, you are free to pickup any 25mm load rated strap in your choice of colour from your local hardware or autoparts store, or even better combine this base with our Wheel Locking Rod Kit (Sold Separately) for the ultimate combination.

  • Difficulty level – 1/5 –Bolting required for Assembly, careful measurement and marking will be required for drilling tray for mounting bolts.
  • Tools required – 5mm Allen wrench, 13mm spanner.
  • What’s included? – Laser cut and CNC folded Sheet metal parts, Nuts, Bolts and Washers (Ratchet Straps not included), Assembly/anti-corrosive paste, plus complete easy to understand installation instructions.
  • Mounting – Mounting is easy, simply position the base in the location of choice, mark the mounting holes and drill through your tray floor, bolt the mount down and fasten your wheel in place using your ratchet straps. Mounting bolts to suit up to 5mm floor sheet thickness are included. NOTE: Wheels must be secured with a secondary security device such as lock and chain plus mounted against a rear facing surface such as headboard or canopy rear wall to prevent the tyre from coming loose in extreme braking or in an accident situation.
  • Preparation – Sheet metal parts have been deburred at the factory, although some sharp edges may be still present and require some preparation before assembly, this can be done with a file, flappy disc, or deburring tool. Parts are also covered with a protective film on one side for fabrication and transport reasons to prevent scratches, this film must be removed prior to assembly and any residue left from the cutting process should be cleaned from the surface, this is best done by wiping with Acetone or a similar solvent. If you wish to have your parts painted or powder-coated, parts should be given a light sanding with 180-240 grit paper and painted before assembly for best results.
  • Materials – Australian made 4mm 5052 Marine Grade Aluminium, 304 Stainless steel fasteners.
  • Dimensions – (mm) 595W x 275L x 85H
  • Weight – 2.3kg

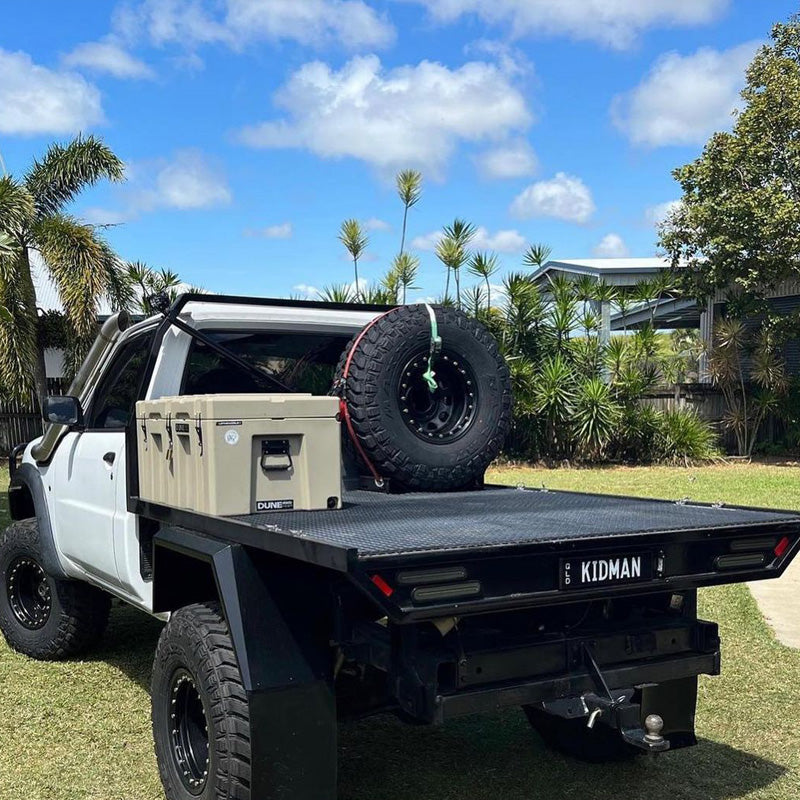

floor spare wheel mount for ute tray or trailer

Tools Required

13mm Spanner

5mm Hex Wrench

Drill

9mm Drill Bit

SKILL LEVEL

KEYBOARD FINGERS

No Assembly Required

IKEA CHAMPION

Basic Assembly Skills

HOME HANDYMAN

Measurement, Drilling, Cutting and Assembly

BURNT SOCKS AND TAN LINES

Basic Steel MIG Welding

Dabs McGhee

Advanced Welding Skills in MIG/TIG

LEGEND OF THE SHED

Advanced Welder, Machinist and Fabricator

Additional information

Weight 3.0 kg
Dimensions 61 × 29 × 14 cm
Width

595 mm

Depth

275 mm

Height

85 mm

Weight

2.3 kg

Skill Level

Fully Assembled only requires installation
